Product NameJJMLD-001A

Product Detail
   Product Description:

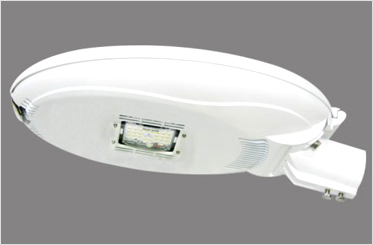

    We have honor introducing the Modulux-mk II high efficiency LED street lamp.Using performance LED components like Philips Lumileds rebel,the totl flux reaches 3500lumen with power consumption of only 55watt,sufficient to replace traditional HID or metal halide lamps of 100 watt.Benefitted from advanced optics technology,its projection is precision controlled within a defined rectangular plot with exceptional homogeneity.Crossing over the technology and tradition ends,while its performance parts changed to LED technology.Its outsides retains the elegant curve and shape of traditional street lamps
   Main Features:
    1.adopting the revolutionary led modules,which integrates led        emitters,optics and leds,and heat dissipation,All into a compact        ip65 al-gardplatform.
    2.led components by philips lumileds rebel.
    3.no concerns of patent or ip infringement.
    4.unique square radiation pattern from the technology,no more         bright-and-dark"Zebra stripe"problems.
    5.exceptional brightness homogeneity,over 0.65 min./ave.With in         the Projection area.
    6.heat dissipation:sfct
    7.significant energy saving over traditionl technology,over 60%
    8.led operating life::over 50,000 hours
    9.ip65
    Note 1:condition of:pole height at 5 meters,average effective                 surface bright at over 25 lux,the comparison of power                 consumption by 55watt led street lamp set using,and                 100watt street lamp set using tradition hip/hps Technology.
    Note2:lumen maintenance of led components at over 76%

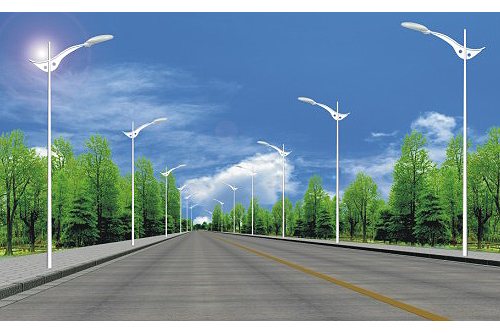

   Product application
  Installation Guide
  1. Optimal Pole Height : 3-6       Meters
  2. Road Width : 3-6 Meters
  3. Road Types : Secondary       Roads, Pedestrian Walks,       Alleys, Parks

  1. Optimal Pole Height : 3-6       Meters
  2. Road Width : 3-6 Meters
  3. Road Types : Secondary       Roads, Pedestrian Walks,       Alleys, Parks

   Specification:
Product Model Code LD-003
   LED Light Source Modutes
1
Unit(Modulite SP50C-4V)
   Operating voltage
85-280
Walt
   Power dissipation
55
Walt(including the PSU)
   Total Flux
3500
Lumen
   Uniformity of brightness
0.65
(Min./Ave)
   Color Temperature CCT
4100K
(Typical)
   Operation Temperature
-40-60
Degree(C)

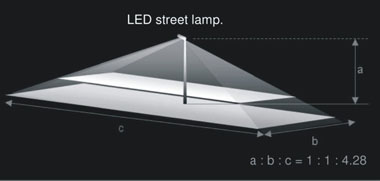

   Ratio(pole height:depth:width)
1:1:4.28
   LED Operating Life Time
50,000
Hours
   Size
518330138
MM(LWH)
   Angle of adjustable fixture
-15-90
Degree
   Weight
5.1
Kg

      Reliability test:
   This product was reliability tested to comply with international safety   standards.thevalidation test plan are as follows:
  1. IP
  2. EMI
  3. Safety
  4. Vibration
  5. Durability
  6. Basic characteristics
  7. Voltage Variations
  8. Temperature cycling
  9. Power on/off
  10. Humidity power on/off
  11. Surge protection
  12. Optical beam maintainability
  13. Optical characteristics and
        luminous efficiency

    Lux readings over different height:

Height Averaqe Lux Area
3M
69.4
312.8M
4M
39.1
417.1M
5M
25.0
521.4M
6M
17.4
625.7M


     Distribution of brightness:


1. Light Module : 55w (55w1pc)
2. Pole Height : 5 Meters
3. Lamp Arm : 0.75 Meters
4. Tilt : 15 degree

Lux Max.
38.0
Lux Min.
11.0
Lux Ave.
25.0
Min./ Ave.
0.65
Min./ Max.
0.30

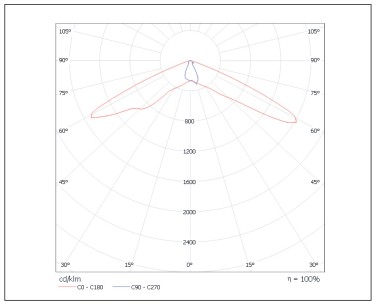

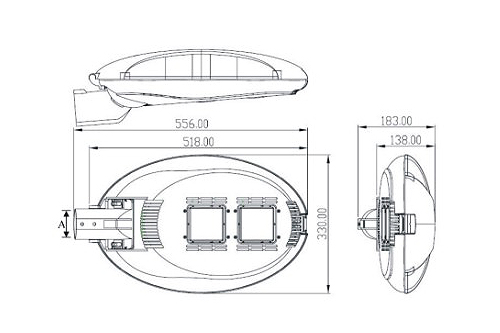

Products with light chart Product Dimensions
