Product NameJJMLD-001B

Product Detail
   Product Description:

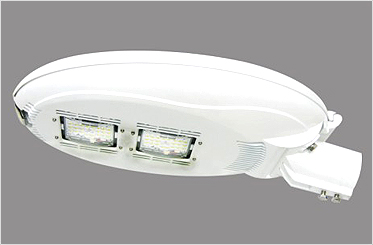

    We have honor introducing the Modulux-mk high efficiency
LED street lamp. Using performance LED components like
Philips Lumileds rebel, the total flux reaches 7000lumen with
power consumption of only 110watt,sufficient to replace
traditional HID or metal halide lamps of 250 watt. Benefitted
from advanced optics technology, its projection is precision
controlled within a defined rectangular plot with exceptional
homogeneity. Crossing over the technology and tradition ends,
while its performance parts changed to LED technology.
Its outsides retains the elegant curve and shape of traditional
street lamps
   Main Features:
    1.adopting the revolutionary LED modules, which integrates LED         emitters, optics and leds, and heat dissipation,
        all into a compact Ip65 AL-Gardplatform.
    2.LED components by Philips Lumileds Rebel.
    3.No concerns of patent or IP infringement.
    4.Unique square radiation pattern from the technology, no more         bright-and-darkzebra stripe problems.
    5.Exceptional Brightness Homogeneity, over 0.65 Min. /Ave. Within         the projection area.
    6.Heat Dissipation: SFCT
    7.Significant energy saving over traditional technology,over 60%
    8.LED Operating Life:: Over 50,000 hours
    9.IP65
    NOTE 1: Condition of: Pole height at 7 meters, average effective     surface bright at over 25.51 lux, the comparison of power
    consumption by 110Watt LED street lamp set using , and 250Watt     street lamp set using tradition HIP/HPS technology.
    NOTE 2: Lumen maintenance of LED components at over 76%.

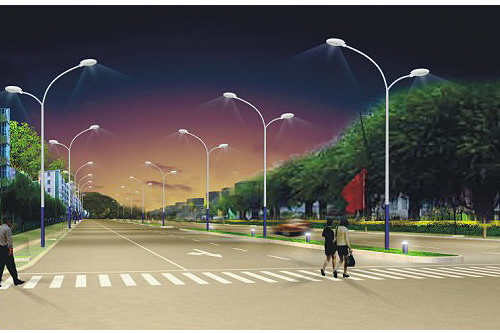

  Product application
  Installation Guide
  1. Optimal Pole Height : 4-8 Meters
  2. Road Width : 4-8 Meters
  3. Road Types : Secondary Roads,       Pedestrian Walks, Alleys, Parks

 1. Optimal Pole Height At 4-8      Meters
 2. Lamp Arm At 0.5-1.5     MetersOverhang
 3. Lamp Arm Tilt At : 153     Detree

   Specification:
Product Model Code LD-003
   LED Light Source Modutes
1
Unit(Modulite SP50C-4V)
   Operating voltage
85-280
Walt
   Power dissipation
1100
Walt(including the PSU)
   Total Flux
7000
Lumen
   Uniformity of brightness
0.65
(Min./Ave)
   Color Temperature CCT
4100K
(Typical)
   Operation Temperature
-40-60
Degree(C)
   Ratio(pole height:depth:width)
1:1:4.28
   LED Operating Life Time
50,000
Hours
   Size
518330138
MM(LWH)
   Angle of adjustable fixture
-15-90
Degree
   Weight
6.0
Kg

      Reliability test:
   This product was reliability tested to comply with international safety   standards.thevalidation test plan are as follows:
  1. IP
  2. EMI
  3. Safety
  4. Vibration
  5. Durability
  6. Basic characteristics
  7. Voltage Variations
  8. Temperature cycling
  9. Power on/off
  10. Humidity power on/off
  11. Surge protection
  12. Optical beam maintainability
  13. Optical characteristics and
        luminous efficiency

    Lux readings over different height:

Height Averaqe Lux Area
4M
78.1
417.1M
5M
50.0
521.4M
6M
34.7
625.7M
7M
25.5
730.0M
8M
19.5
834.2M


     Distribution of brightness:


1. Light Module : 110W (55W1pcs)
2. Pole Height : 7 Meters
3. Lamp Arm : 1.0 Meters
4. Tilt : 15 degree

Lux Max.
39.0
Lux Min.
12.0
Lux Ave.
25.0
Min./ Ave.
0.65
Min./ Max.
0.30

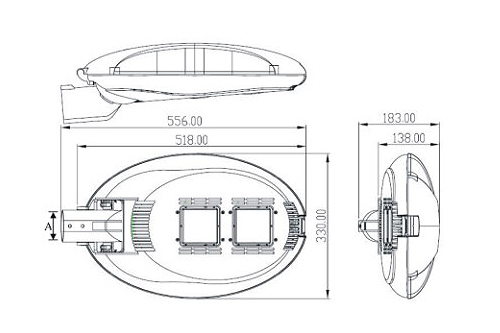

Products with light chart Product Dimensions
